Wave Soldering Machine

  • M-350 Solder Wave machine Build in Spray Flux System
M-350 Solder Wave machine Build in Spray Flux System

M-350 Solder Wave machine Build in Spray Flux System

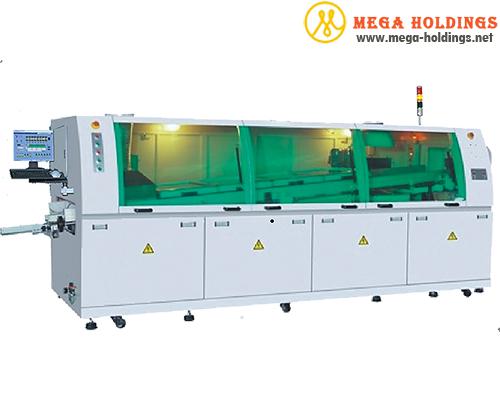

  • Product description: M-350 Solder Wave machine Build in Spray Flux System PCB size 50-350mm Transportation speed 0~2m/min Transportation angle 3~7° PCB transport height: 750±30mm Preheating zone power 16KW
  • INQUIRY

Model

M-350

PCB transportation direction

left → right

PCB size

50-350mm

Transportation speed

0~2m/min

Transportation angle

3~7°

PCB transport height:

750±30mm

Preheating zone power

16KW

Preheating zone temperature

Can be set from room temperature to 260 °C

Preheating zone length

2000mm

Number of preheating zones

4 hot air

Preheating temperature control mode

PID control

Solder pot power

12KW

Solder pot capacity

About 380kg

Solder pot temperature

Max. Room temperature ~ 300 ° C

Solder pot temperature control mode

PID control

Wave motor

380V/220V×2 frequency converter speed regulation

Control system

Siemens PLC+DELL PC control

Power

3φ380V 50HZ

Total power

Approx.29.5 KW

Common power

7-10KW

Body size

4500 (L) (including rail size) * 1400 (W) * 1700 (H) mm

Weight

Approx.1260kg

Machine Color

Gray

Sprayer Part：
1). The stepper motor drives the flux spray system, and the spray speed is automatically adjusted with the width of the PCB and the transport speed to ensure uniformity of the spray at any time;
2). The flux is automatically extracted and has the characteristics of good sealing,
constant pressure and safety.
3). Drawer type spray system (can be drawn out and maintained as a whole), equipped
with double-layer rosin exhaust gas filter plate, effectively reducing pollution;
4). Japan "lumina" st-6 original nozzle is used for long-term use without replacement;
5). Under the nozzle, 1.5mm thick stainless steel is bent to form a tray for loading waste water and waste flux, which can be freely drawn out and cleaned. Oil-water isolator is installed on the side to regulate the air pressure and filter the moisture in the air pressure.
6).Independent pneumatic control box design, under the distribution of the total pressure
valve: pneumatic pump, air conditioning, water conditioning, are independently
controlled by the pressure regulator valve, flux flow can be adjusted separately, greatly improving the accuracy and consistency of spray control.
