ITEM |

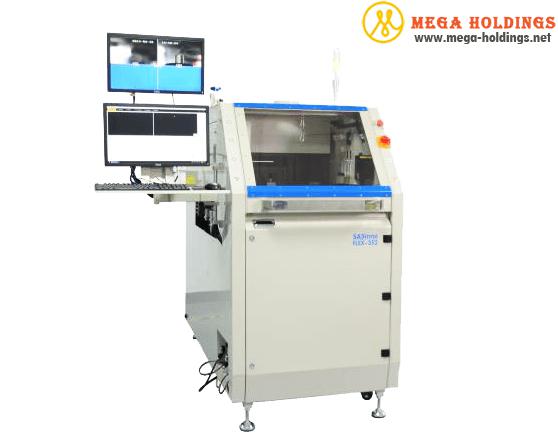

FLEX-352 |
|
Machine dimension |
L900mm × W1350mm × H1700m |
|
Net weight |
700KG |
|
Air supply |
3-5Mpa |
|
Power supply |
1HP 220V 50HZ |
|
Exhausting required |
500--800CMB/H |
|

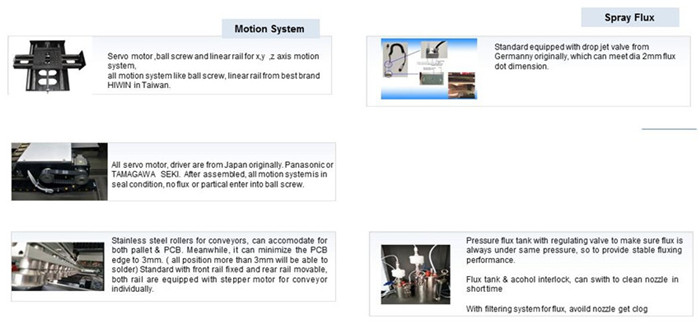

Robotic |
|
|
Motion control |
Closed loop servo |
|
Frame type |
Welded Steel |
|
Minimum board size |
50mm*50mm |
|
Maximum board size |
W350mm*L350mm |
|
Edge clearance |
3mm |
|
Width adjustment |
Auto |
|
Flux management |
|
|
Spray flux nozzle |
4mm-10mm |
|
Spray flux durability |
High durability stainless steel |
|
Flux capacity |
1L |
|

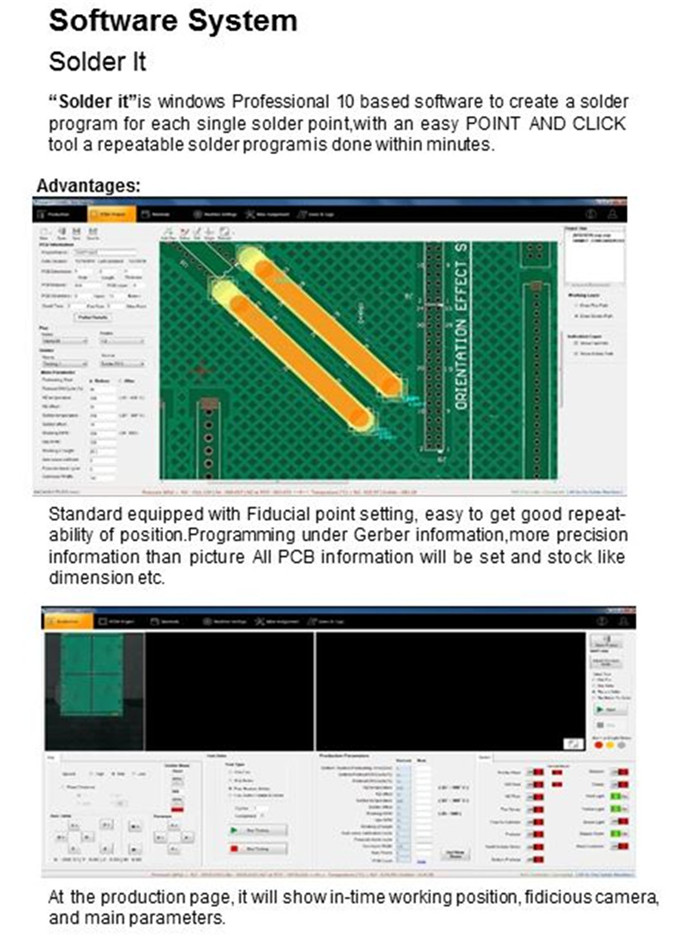

Software / control |
|
|
Typical program time |
10 Min |
|
Programming method |
PC |
|
Operating power/Max power |
4KW/7KW |
|
Robotic Platform |
|
|
Axes of motion |
X/Y/Z |
|
Motion control |
Closed loop servo |
|
Position accuracy |
0.05mm |
|

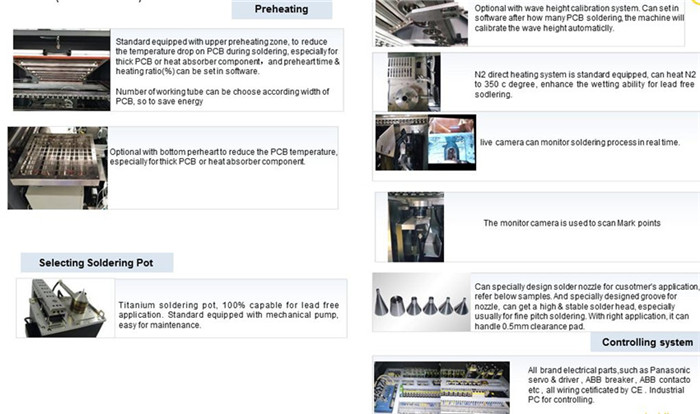

Solder management |
|
|
Standard solder stations |
1 |
|
Solder pot capacity |
15KG |
|
Solder temperature control |
PID |
|
Heat-up time |
35min |
|
Max temperature |
380Ċ |
|
Solder pot heater |
1.2KW |
|
Solder nozzles |
|
|
Solder nozzles |
4-10MM |
|
Nozzle material |
Proprietary alloy |
|
Standard w /system |
Five (5) nozzles |
|
Nitrogen (N2) |
Insertion management |
|
Heated N2 |
Standard equipped |
|
N2 consumption per Nozzle |
1.5 m3 /h |
|
N2 purity oxygen |
O2<20PPM |
