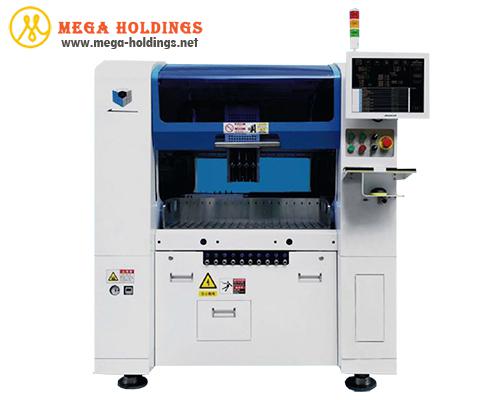

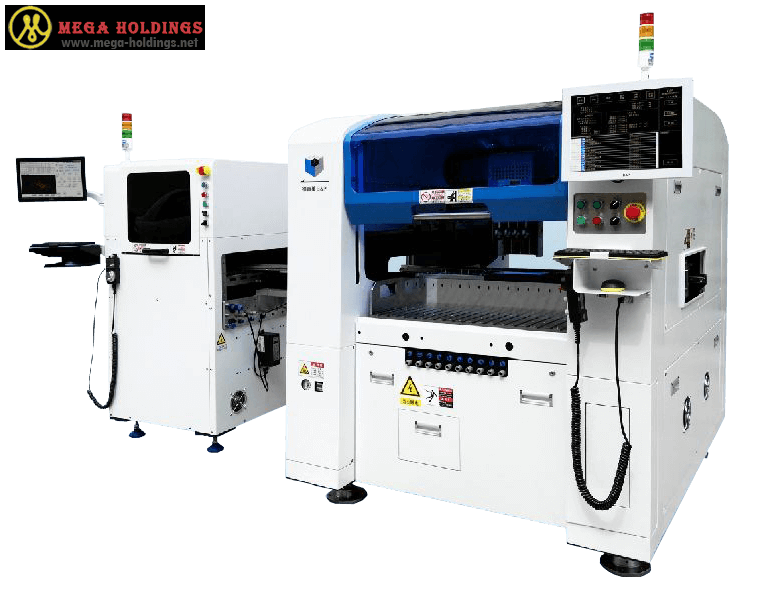

Auto Insertion Machine

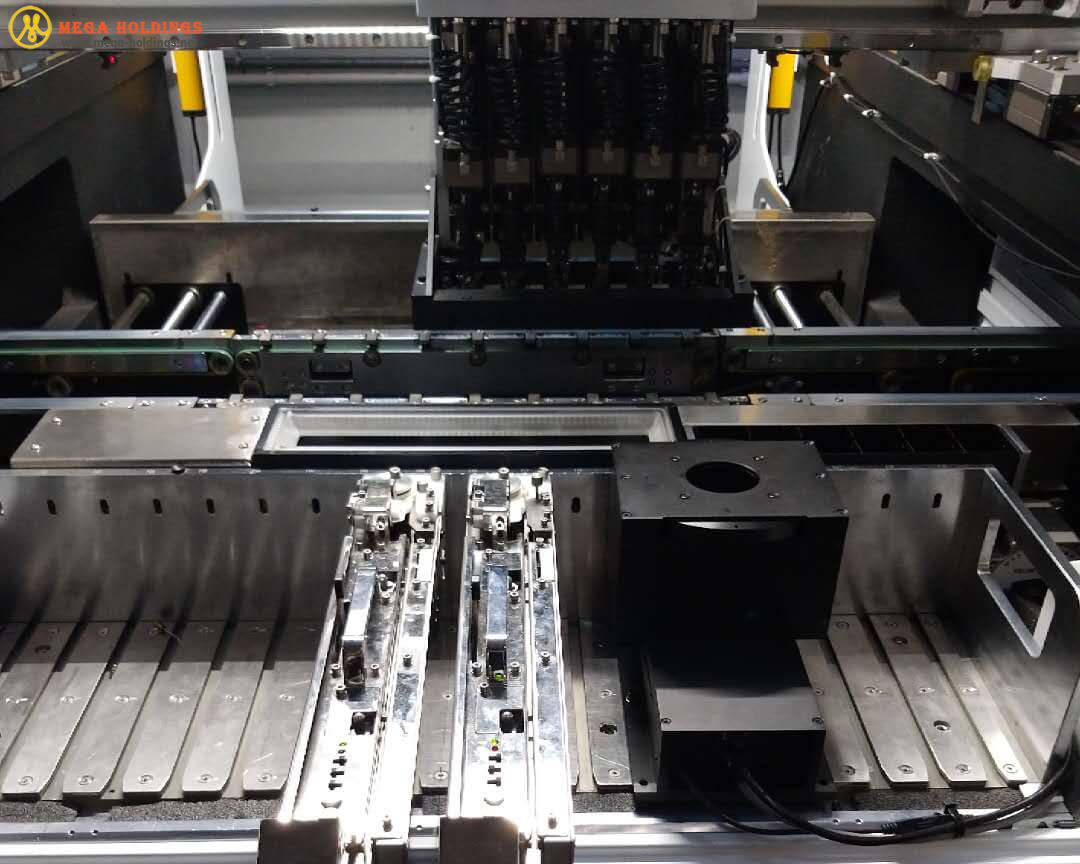

Tape Feeder

Stick Feeder

Bulk Feeder

Radial Feeder

Axial Feeder

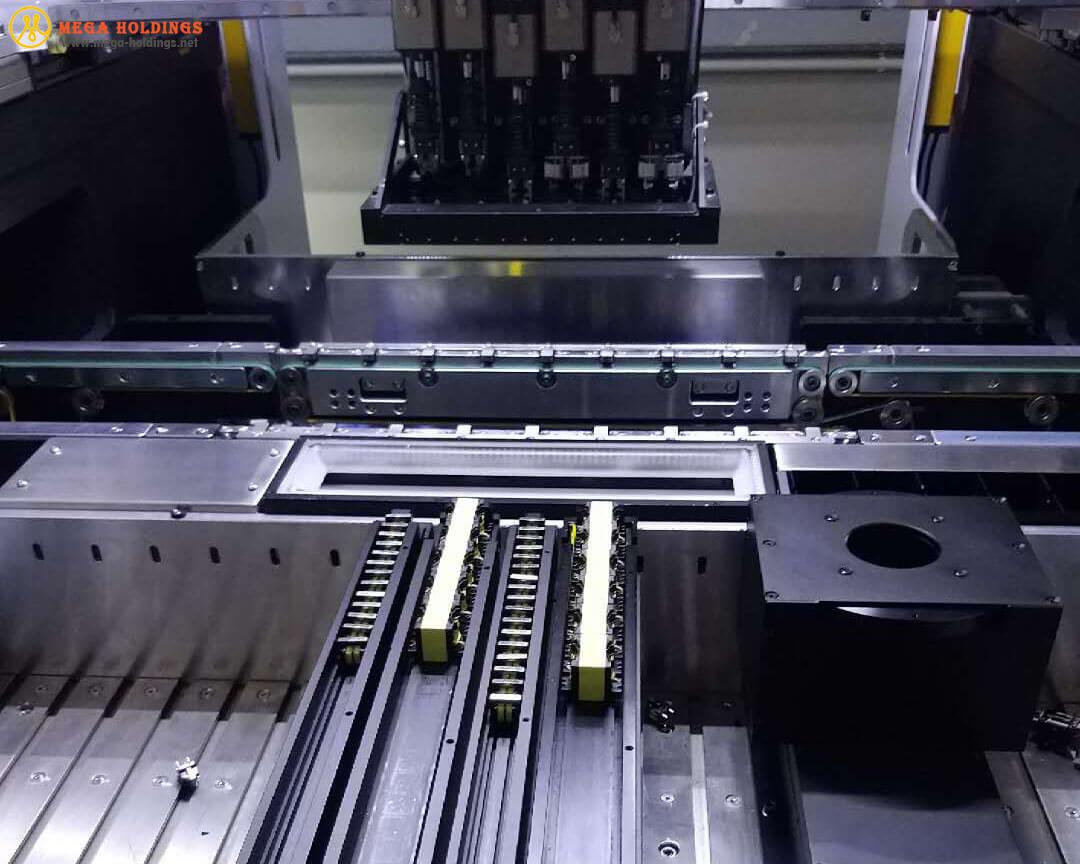

Stick Feeder

Multi Stick

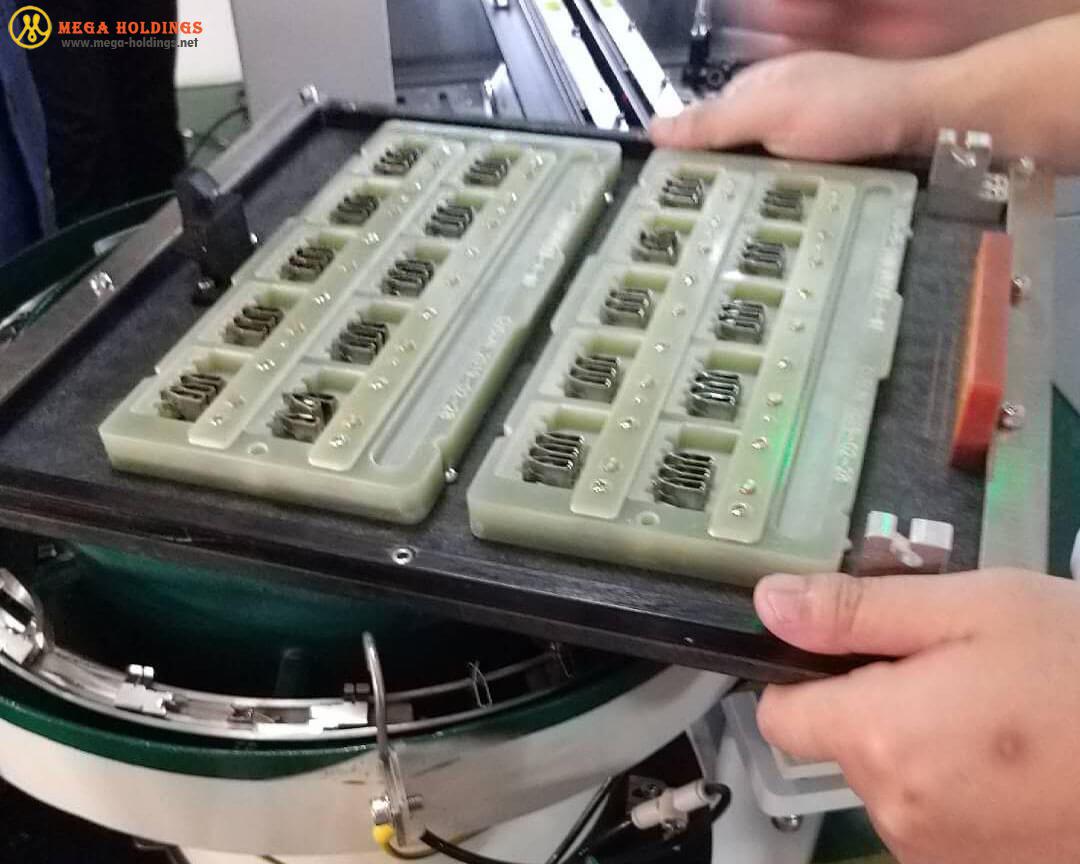

Tray Holder

Double Tray Feeder

Matrix Tray Feeder

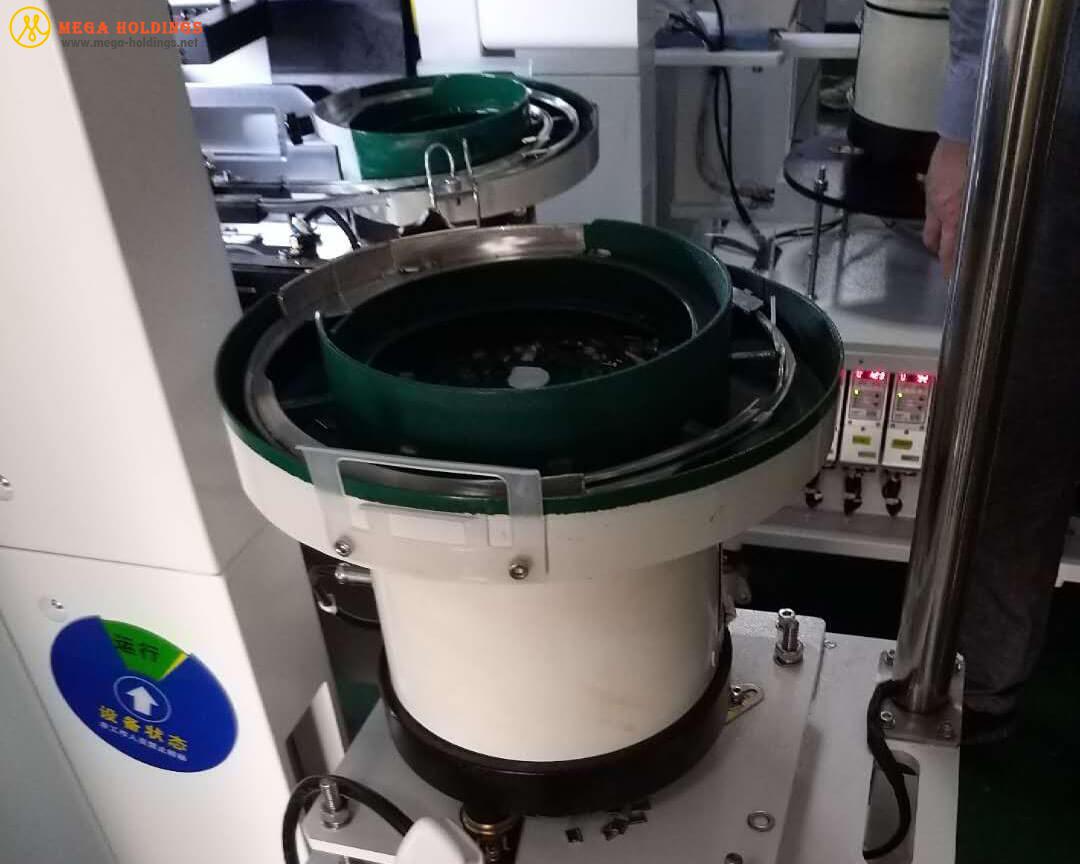

Bowl Feeder

M350

18

12

18

12

2

1

1

16

M360

18

12

18

12

2

1

1

16

M560

18

12

18

12

2

1

1

6

Item

M350

M360

M560

Insertion Speed

1S/PCS (Gripper)

0.9 S/PCS (Gripper)

1S/PCS (Gripper)

0.9 S/PCS (Vacuum)

0.7 S/PCS (Vacuum)

0.9 S/PCS (Vacuum)

Insertion accuracy

±0.03mm

±0.03mm

±0.03mm

Component size

3mm-40mm

3mm-40mm

3mm-40mm

Component height

30mm     /55mm（Optional）

30mm     /55mm（Optional）

30mm     /55mm（Optional）

Gripper changeable

Optional

Optional

Optional

Insertion direction

0-360°

0-360°

0-360°

PCB size

Max410mm*360mm

Max410mm*360mm

Max410mm*560mm

PCB Thickness

0.8-5.0mm

0.8-5.0mm

0.8-5.0mm

PCB weight

Max 5kg

Max 5kg

Max 5kg

Rail height

900mm   ±20

900mm   ±20

900mm   ±20

Insertion component

Connector, outlet port, switch button, capacitor, transformer, chip

Connector, outlet port, switch button, capacitor, transformer, chip

Connector, outlet port, switch button, capacitor, transformer, chip

Feeder type

Bulk, Tape, Tube, Tray and

Auto-Tray Feeder

Bulk, Tape, Tube, Tray and

Auto-Tray Feeder

Bulk, Tape, Tube, Tray and

Auto-Tray Feeder

Insertion number

4

6

6

Machine dimension

(W*D *H)

1450mm*1500mm*1600mm

1450mm*1500mm*1600mm

1450mm*1700mm*1600mm

Machine weight

1500KG

1550KG

1800KG

Power supply

220VAC (single phase)

50HZ

220VAC (single phase)

50HZ

220VAC (single phase)

50HZ

Apparent power

2.0KVA

2.3KVA

2.6KVA

Operation air pressure

0.5±0.05MPa

0.5±0.05MPa

0.5±0.05MPa

Air consumption

60 l/min

70 l/min

70 l/min

Operation temperature

5-30℃

5-30℃

5-30℃

Machine noise

70dB

70dB

70dB

Upload file format

TXT

TXT

TXT

SMEMA

communication port

EUR 14pin SMEMA Port

EUR 14pin SMEMA Port

EUR 14pin SMEMA Port

Program

Vision teaching system

Vision teaching system

Vision teaching system

Operation system

WIN7

WIN7

WIN7

1 Designation conditions (object components: aluminum electrolytic capacitor Φ8mm, 6-axis simultaneous feeding)

2 Can be customized according to components
